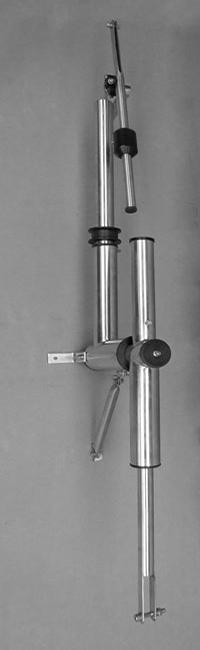

windvane self steering L 360

South Atlantic Self Steering WindVane L 360

Description.
  It is a servo-pendulum windvane. It is the most widely proven principle for a windvane. This principle offers a great sensitivity-strength balance.

The windvane is a fast and efficient steering system. The servo-pendulum system consists of a [sensor-vane] which transmits the change in the wind direction to the windvane rudder. This moves laterally on reception of the signal. The rudder is attached to the tiller by [lines] which move the tiller or wheel that steer the sail boat.

Advantages of our Windvane

  • The height of the windvane mast can be customized to suit your sailboat design offers.
  • The lengh of the servo pendulum shaft is available in various lengths.
  • The servo pendulum can be lifted sideways out of the water and is accommodated alongside the tower.
  • The weight is approximately 9kg for the smalest version to 14kg for the bigger one, depending on the mounting details.
  • The servo pendulum is fitted behind the windvane mast.
  • This model offers the possibility of being fitted to different yachts and stern details.
  • The length of the horizontal tube is variable for mounting on an integral platform or underneath a higher platform.
  • Various methods of mounting are possible :
  • With Mounting Frame : An ideal solution for straight or convex transoms or for a transom mounted rudder.
  • This model can be mounted off-center.

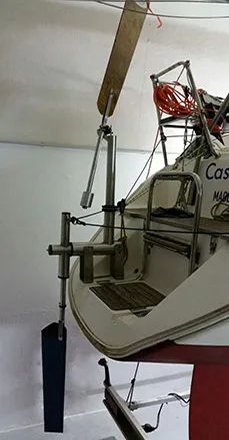

south atlantic self steering wind vane l360a

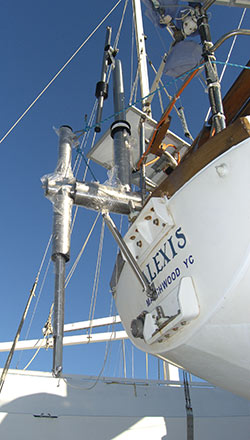

south atlantic self steering wind vane l360

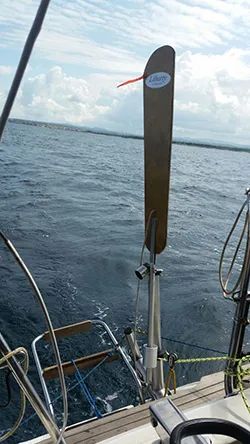

south atlantic self steering l360

Strength and Durability
South Atlantic, uses a stainless steel 316.
South Atlantic grants a lifetime guarantee against damage in the material (stainless steel).

Materials
" stainless steel 316,
" POM bearings.
" Servo rudder, Wood made up with [bituminous]
" 6 mm polycarbonate vane

Bearings
"We use sliding bearings: they need no upkeep and run softly.
Demand for spare bearings is almost man-existing!

Weight
ca. 9kg to 14kg depending on model and mounting details

LOA
Serie L 360 K:    < 10.00 m / 33 ft
Serie L 360 G:    < 11.50 m / 38 ft
Serie L 360 G II:< 12.60 m / 42 ft

Displacement
Serie L 360 K:     < 5.000 kg
Serie L 360 G:     < 8.000 kg
Serie L 360 G II: < 12.000 kg

Windvane and Autopilot
Almost 100% of windvane buyers had an automatic pilot on board before the purchase! " The windvane is used 90% of the times after both systems have been installed! " When a ship sails with sails set, the wind steers it better!



Price List:

L 360 K Basic 1950 USD L 360 G Basic 2445 USD l 360 GII Basic 2665 USD

L 360 Basic units include:
* Standard Mounting.
* 1 Air foil.
* 1 blade.
* Manual

 L 360 Offshore include:
* Standard Mounting
* 2 Water Paddle
* 2 Airvane
* Tools (Allem keys)
* User guide


 L 360 Offshore Plus include:
* Standard Mounting
* 2 Water Padles
* 2 Airvanes
* Bearings set (body and shaft)
* 1 complete push rod and push rod connectors
* Windvane Retro Light
* Tools (Allem keys)
* User guide



    • Advance Purchase Special Offers:
      Order 30 Days in Advance and Save 2.5%
      Order 60 Days in Advance and Save 5%
      Order 90 Days in Advance and Save 7.5%
      Order 120 Days in Advance and Save 10%

      Terms and Conditions: Rates shown are applicable to the windvane not to other items, subject to availability.

    1. Wired transfers directly to our bank; (contact us for wire transfer information).
    2. Bitcoins, ETH, LTC and many more cryptocurrencies (contact us for transfer information)
    3. Money order, Personal checks and certified check are subject to a clearing. period.
    4. Paypal
    5. Note: Offers can not be combined.

      6. Check Terms and Conditions of Sale

    • Delivery: Immediate to 6 weeks as quoted when ordered.
      SHIPPING: We cannot be responsible for any fees, charges, delays or problems caused by shippers or customs once the shipment leaves our factory. Customs procedures and charges vary from country to country. Please check with local officials to get an idea of costs. International customers are responsible for any import duties and taxes associated with their order. Read More

    • Prices, design, and specifications: are subject to change without notice. Neither manufacturer nor seller shall be liable for any damage to the yacht, persons, or property due to failure of the Self steering or misuse of the same.
      Prices do not include fright. However, local and international taxes on the product have to be paid. Check Terms and Conditions of Sale

    • Each system warranted for three years of first owner's use against defective materials and workmanship plus our life- warrantee on damage in the material (aluminium) made by weather.The warranty does not cover transport or visits to the vessel, and proof of purchase must be supplied.
Offers valid until 31- 12- 2024 *.
